terraform-containerization-bookstore-api

Containerization of Python Flask Bookstore Web API with MySQL using Docker Compose and Terraform

Github top language Github language count Repository size License

:dart: About

Bookstore Web API Application aims to create a bookstore web service using Docker to have the understanding to dockerization of an application. The application code is to be deployed as a RESTful web service with Flask using Dockerfile and Docker Compose on AWS Elastic Compute Cloud (EC2) Instance using Terraform.

Project Architecture

Project

:sparkles: Case Study Details

Your team has started working on a project to create a Bookstore Application as Web Service.
Software Developers in your team have already developed first version of Bookstore application. They have designed a database to keep book records with following fields.
- book_id: unique identifier for books, type is numeric.
- title: title of the book, type is string.
- author: author of the book. type is string.
- is_sold: book availability status, type is boolean.
Your teammates also created the RESTful web service as given in Bookstore API using Python Flask Framework. Below table shows how the HTTP methods are designed to affect the given resources identified by URIs.

HTTP Method	Action	Example
`GET`	Obtain information about a resource	http://[ec2-hostname]/books (retrieves list of all books)
`GET`	Obtain information about a resource	http://[ec2-hostname]/books/123 (retrieves book with id=123)
`POST`	Create a new resource	http://[ec2-hostname]/books (creates a new book, from data provided with the request)
`PUT`	Update a resource	http://[ec2-hostname]/books/123 (updates the book with id=123, from data provided with the request)
`DELETE`	Delete a resource	http://[ec2-hostname]/books/123 (delete the book with id=123)

You are, as a cloud engineer, requested to deploy the app in the development environment on a Docker Machine on AWS EC2 Instance using Terraform to showcase your project. To do that you need to;
- Get the app code from GitHub repo of your team.
- Create docker image using the Dockerfile.
- Deploy the app using docker compose. To do so;
  - Create a database service using MySQL.
  - Configure the app service to run on port 80.
  - Use a custom network for the services.
In the development environment, you can configure your Terraform config file using the followings,
- The application should be created with new AWS resources.
- The application should run on Amazon Linux 2 EC2 Instance
- EC2 Instance type can be configured as t2.micro.
- Instance launched by Terraform should be tagged Web Server of Bookstore
- The Web Application should be accessible via web browser from anywhere.
- The Application files should be downloaded from Github repo and deployed on EC2 Instance using user data script within Terraform configuration file.
- Bookstore Web API URL should be given as output byTerraform, after the resources created.

:rocket: Technologies

The following tools were used in this project:

:white_check_mark: Requirements

Before starting :checkered_flag:, you need to have Git, Docker and Terraform installed on your machine.

:checkered_flag: Starting

# Clone this project
git clone https://github.com/devenes/terraform-containerization-bookstore-api

# Access
cd terraform-containerization-bookstore-api

# Initialize terraform
terraform init

# Apply terraform
terraform apply -auto-approve

To showcase your projects REST functions, use curl command for each HTTP methods namely, GET, POST, PUT, DELETE.

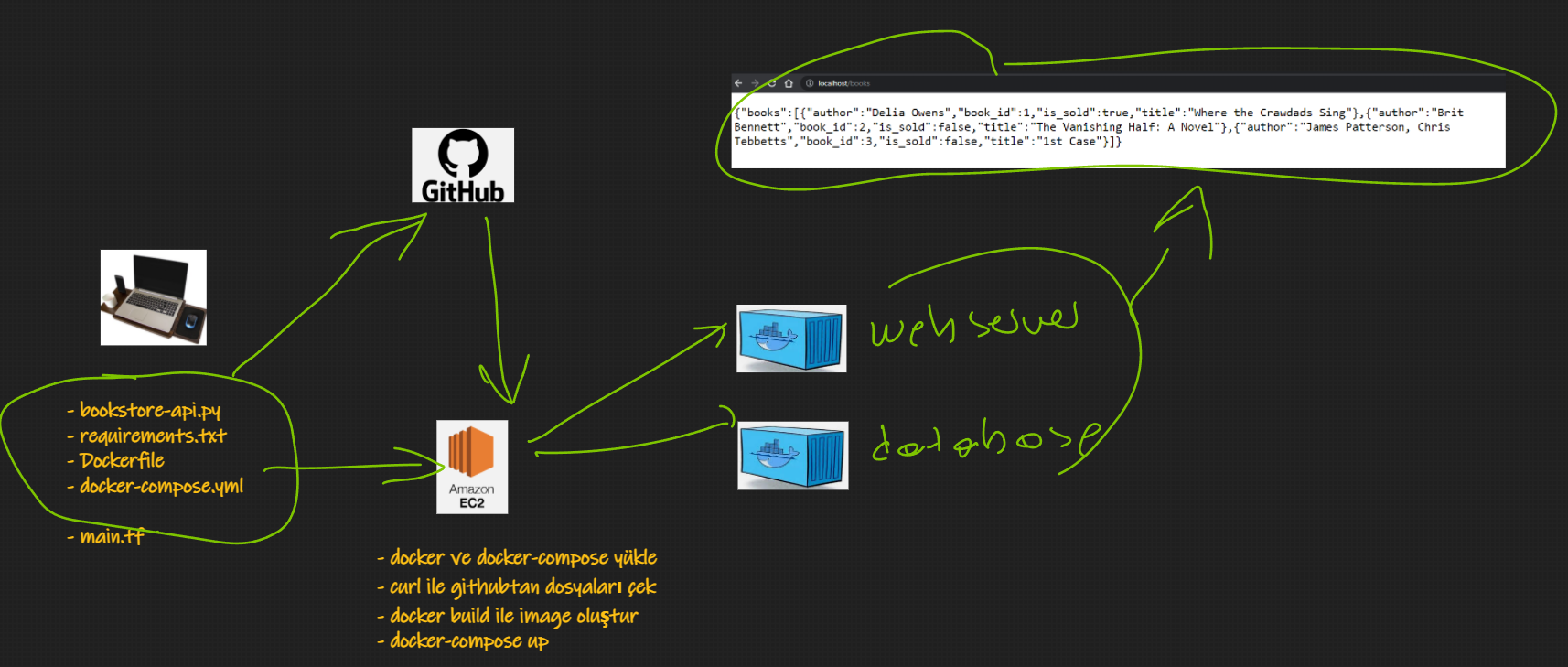

note

GET

curl --request GET \
--url 'http://ec2-52-91-247-19.compute-1.amazonaws.com/books' \
--header 'content-type: application/json'

POST

curl --request POST \
--url 'http://ec2-52-91-247-19.compute-1.amazonaws.com/books' \
--header 'content-type: application/json' \
--data '{"author":"Paulo Coelho", "title":"The Alchemist", "is_sold":true}'

curl --request POST \
--url 'http://ec2-52-91-247-19.compute-1.amazonaws.com/books' \
--header 'content-type: application/json' \
--data '{"author":"Gabriel Garcia Marquez", "title":"One Hundred Years of Solitude", "is_sold":true}'

curl --request POST \
--url 'http://ec2-52-91-247-19.compute-1.amazonaws.com/books' \
--header 'content-type: application/json' \
--data '{"author":"Harper Lee", "title":"To Kill a Mockingbird", "is_sold":true}'

PUT

curl --request PUT \
--url 'http://ec2-52-91-247-19.compute-1.amazonaws.com/books/3' \
--header 'content-type: application/json' \
--data '{"author":"Jose Rodrigues dos Santos", "title":"A Formula de Deus", "is_sold":true}'

DELETE

curl --request DELETE \
--url 'http://ec2-52-91-247-19.compute-1.amazonaws.com/books/2' \
--header 'content-type: application/json'

Expected Outcome

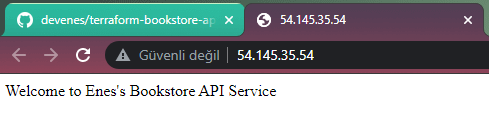

API Service Output

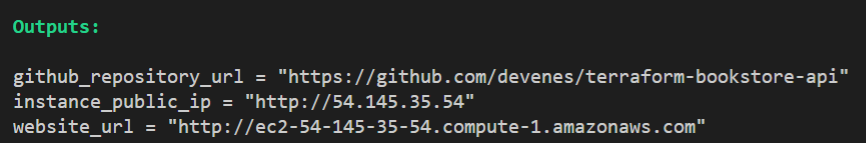

Terraform Outputs

At the end of the project, following topics are to be covered;

MySQL Database Configuration
Bash scripting
Docker Images
Docker Compose
AWS EC2 Service
AWS Security Group Configuration
Terraform Configuration with AWS
Git & Github for Version Control System

At the end of the project, you will be able to;

configure connection to the MySQL database.
build a Docker image.
configure Docker Compose to run Python Flask app.
improve bash scripting skills using user data section in Terraform to install and setup web application on EC2 Instance
configure AWS EC2 Instance and Security Groups.
configure Terraform files to use AWS Resources.
use git commands (push, pull, commit, add etc.) and Github as Version Control System.
run the web application on AWS EC2 instance using the GitHub repo as codebase.

Resources

:memo: License

This project is under license from MIT. For more details, see the LICENSE file.
